Dictionary check

The different steps are :

1. Retrieve the client's internal API key from Vault
2. Go to the MIT site (proxy)

These steps are detailed below.

Retrieval from Vault

Go to Vault in secret/applications/nginx-alertreceiver here.

Example for the client "test04"

You retrieve the internal API key.

Dictionary Verification

1. Go to MIT here.

   Note

   To use MIT, you must enter the proxy http://proxypac.si.francetelecom.fr:8080/

   Example with Chromium:

   chromium --proxy-pac-url="http://proxypac.si.francetelecom.fr:8080/" "https://mit.equant.com/MIT/consultation_alert_receiver_configuration.php"

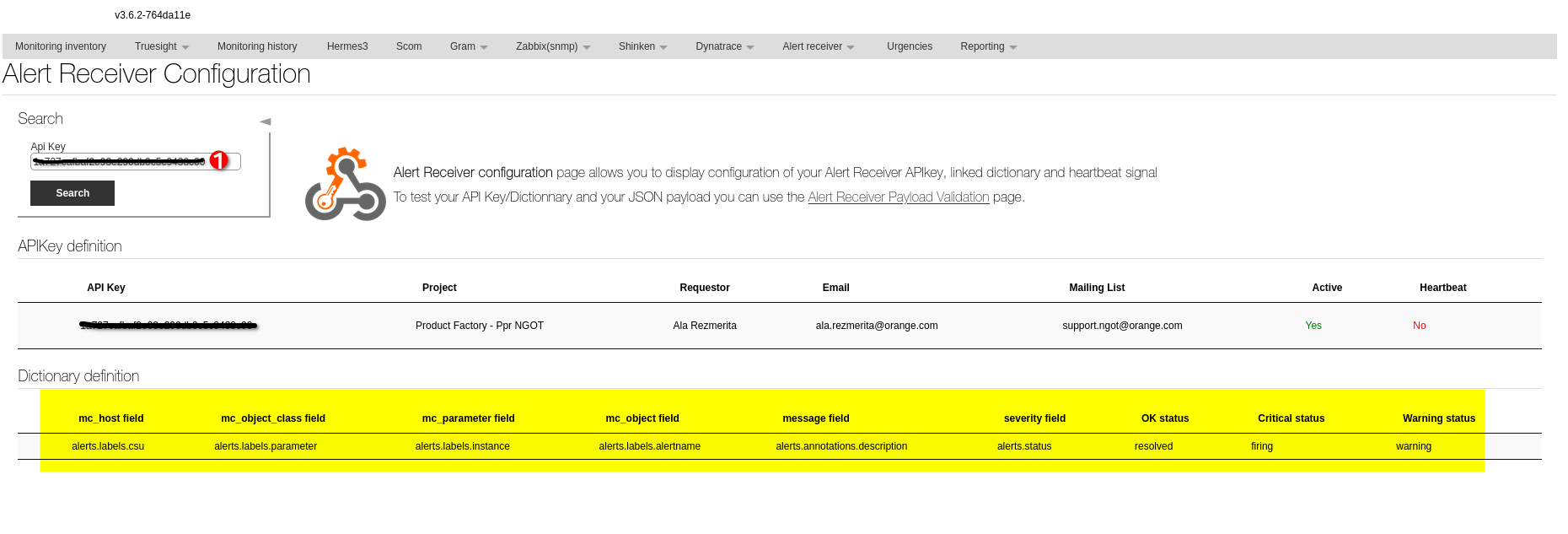

2. Enter the internal API key.

   You will find all the dictionary information at the bottom of the page.

Example for the client "test04"

Control the last line

If a specific dictionary is given, you must control against it.

Otherwise, control your dictionary with the default values below:

mc_host field	mc_object_class field	mc_parameter field	mc_object field	message field	severity field	OK status	Critical status	Warning status
alerts.labels.csu	alerts.labels.parameter	alerts.labels.instance	alerts.labels.alertname	alerts.annotations.description	alerts.status	resolved	firing	warning

Sending an alert test in cmd

Using the dictionary definition, create a file paylaod.json.

for example:

{"alerts":[
    {
        "csu":"xxxx",
        "parameter":"P3_AWS_FEC2",
        "alertname":"CPUUtilization",
        "instance":"VM_test",
        "description":"CPU_utilization",
        "status":"OK"
    }
    ]
}

other example:

mc_host field	mc_object_class field	mc_parameter field	mc_object field	message field	severity field	OK status	Critical status	Warning status
csu	namespace	metric_name	dimension	message_alarm	state_alarm	resolved	OK	ALARM

{
  "alarm_name": "CPU Utilization",
  "message_alarm": "Alarm triggers when CPU Utilization on this instance exceeds 90.0",
  "csu": "XXXXX",
  "state_alarm": "OK",
  "namespace": "P3_AWSEC2",
  "metric_name": "CPUUtilization",
  "dimension": "VM_test"
}

launch the following command to send:

curl -X POST -H "Content-Type: application/json" --data @paylaod.json https://alertreceiver.prdcasa.caascad.com/alertreceiver/mth\?apikey\=XXXXXXX

Screenshot considerations

Warning

The API Key is visible at 2 places. Do not share it !

Remove the API Key from the screenshot:

• either inspect the page first with the Web development tools, find the API Key in the source code and replace with <Redacted> or *************, then take a safe screenshot,
• or take a screenshot, then edit it with a picture editor like Gimp, Draw... and remove the 2 occurrences of the API Key.
